Darwinia Bridge
Background
Bridger
Relayers (aka. Bridgers) in Darwinia Network are offchain worker clients which help relay the headers and messages between source chains and target chains
Background
deprecated dj
Shadow
Services for bridger which retrieve header data from public chains and generate mmr proof
Background
Wormhole
Background

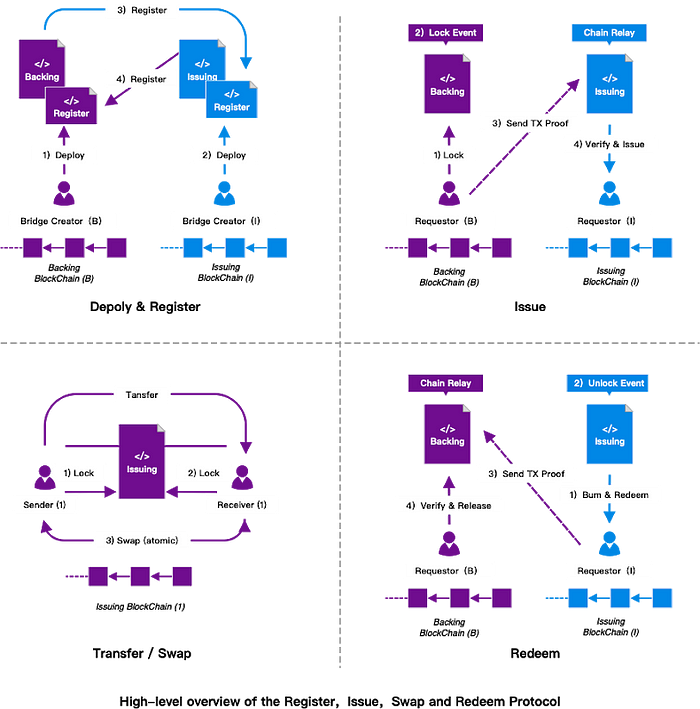

WorkFlow && Core Logic
Ethereum To Darwinia
wormhole
invoke token contract
function redeemTokenEth(account, params, callback) {
let web3js = new Web3(window.ethereum || window.web3.currentProvider);
const contract = new web3js.eth.Contract(TokenABI, config[`${params.tokenType.toUpperCase()}_ETH_ADDRESS`]);
contract.methods.transferFrom(account, config['ETHEREUM_DARWINIA_ISSUING'], params.value, params.toHex).send({ from: account }).on('transactionHash', (hash) => {
callback && callback(hash)
})
}
contract
burn token and send BurnAndRedeem event
function tokenFallback(
address _from,
uint256 _amount,
bytes _data
) public whenNotPaused {
...
IBurnableERC20(msg.sender).burn(address(this), _amount);
emit BurnAndRedeem(msg.sender, _from, _amount, _data);
}
bridger
scan ethereum txs from token contracts
if l.topics.contains(&contracts.ring) || l.topics.contains(&contracts.kton)
{
EthereumTransaction {
tx_hash: EthereumTransactionHash::Token(
l.transaction_hash.unwrap_or_default(),
),
block_hash: l.block_hash.unwrap_or_default(),
block,
index,
}
}
...
affirm
- will start the relay game in darwinia
/// Ethereum EthereumRelayHeaderParcel including ethereum block header and mmr root from shadow
#[derive(Encode, Decode, Debug, Default, PartialEq, Eq, Clone, Serialize, Deserialize)]
pub struct EthereumRelayHeaderParcel {
/// Ethereum header
pub header: EthereumHeader,
/// MMR root
pub mmr_root: [u8; 32],
}
...
let parcel = shadow.parcel(target as usize + 1).await.with_context(|| {
format!(
"Fail to get parcel from shadow when affirming ethereum block {}",
target
)
})?;
...
let ex = Extrinsic::Affirm(parcel);
let msg = MsgExtrinsic(ex);
extrinsics_service.send(msg).await?;
redeem
- redeem after the end of relay game and block parcel confirmed
/// Ethereum ReceiptProofThing including Merkle Patricia Trie proof from ethereum and mmr proof from shadow
#[derive(Clone, Debug, Default, PartialEq, Eq, Encode)]
pub struct EthereumReceiptProofThing {
/// Ethereum Header
pub header: EthereumHeader,
/// Ethereum Receipt Proof
pub receipt_proof: EthereumReceiptProof,
/// MMR Proof
pub mmr_proof: MMRProof,
}
...
let proof = shadow
.receipt(&format!("{:?}", tx.enclosed_hash()), last_confirmed)
.await?;
let redeem_for = match tx.tx_hash {
EthereumTransactionHash::Token(_) => RedeemFor::Token,
};
...
let ex = Extrinsic::Redeem(redeem_for, proof, tx);
let msg = MsgExtrinsic(ex);
extrinsics_service.send(msg).await?;
guard vote_pending_relay_header_parcel
- tech_comm member arbitrate as replacement for the relay game arbitrate
if pending_block_number > last_confirmed
&& !ethereum2darwinia.has_voted(&guard_account, voting_state)
{
let parcel_from_shadow = shadow.parcel(pending_block_number as usize).await?;
let ex = if pending_parcel.is_same_as(&parcel_from_shadow) {
Extrinsic::GuardVote(pending_block_number, true)
} else {
Extrinsic::GuardVote(pending_block_number, false)
};
extrinsics_service.send(MsgExtrinsic(ex)).await?;
}
shadow
mmr root
fn get_mmr_root(&self, leaf_index: u64) -> Result<Option<String>> {
...
let mmr_size = cmmr::leaf_index_to_mmr_size(leaf_index);
let mmr = MMR::<[u8; 32], MergeHash, _>::new(mmr_size, store);
let root = mmr.get_root()?;
}
mmr proof
fn gen_proof(&self, member: u64, last_leaf: u64) -> Result<Vec<String>> {
let mmr_size = cmmr::leaf_index_to_mmr_size(last_leaf);
let mmr = MMR::<[u8; 32], MergeHash, _>::new(mmr_size, store);
let proof = mmr.gen_proof(vec![cmmr::leaf_index_to_pos(member)])?;
}
darwinia relay game
start game
#[weight = 0]
pub fn affirm(
origin,
ethereum_relay_header_parcel: EthereumRelayHeaderParcel,
optional_ethereum_relay_proofs: Option<EthereumRelayProofs>
) {
let game_id = T::RelayerGame::affirm(
&relayer,
ethereum_relay_header_parcel,
optional_ethereum_relay_proofs
)?;
...
}
challenge&extend game
pub fn dispute_and_affirm(
origin,
ethereum_relay_header_parcel: EthereumRelayHeaderParcel,
optional_ethereum_relay_proofs: Option<EthereumRelayProofs>
)
fn extend_affirmation(
origin,
extended_ethereum_relay_affirmation_id: RelayAffirmationId<EthereumBlockNumber>,
game_sample_points: Vec<EthereumRelayHeaderParcel>,
optional_ethereum_relay_proofs: Option<Vec<EthereumRelayProofs>>,
)
update games
find the relayer win and confirm_relay_header_parcels
pub fn update_games(game_ids: Vec<RelayHeaderId<T, I>>) -> DispatchResult {
let now = <frame_system::Module<T>>::block_number();
let mut relay_header_parcels = vec![];
for game_id in game_ids {
trace!(
target: "relayer-game",
"> Trying to Settle Game `{:?}`", game_id
);
let round_count = Self::round_count_of(&game_id);
let last_round = if let Some(last_round) = round_count.checked_sub(1) {
last_round
} else {
// Should never enter this condition
error!(target: "relayer-game", " > Rounds - EMPTY");
continue;
};
let mut relay_affirmations = Self::affirmations_of_game_at(&game_id, last_round);
match (last_round, relay_affirmations.len()) {
// Should never enter this condition
(0, 0) => error!(target: "relayer-game", " > Affirmations - EMPTY"),
// At first round and only one affirmation found
(0, 1) => {
trace!(target: "relayer-game", " > Challenge - NOT EXISTED");
if let Some(relay_header_parcel) =
Self::settle_without_challenge(relay_affirmations.pop().unwrap())
{
relay_header_parcels.push(relay_header_parcel);
}
}
// No relayer response for the latest round
(_, 0) => {
trace!(target: "relayer-game", " > All Relayers Abstain, Settle Abandon");
Self::settle_abandon(&game_id);
}
// No more challenge found at latest round, only one relayer win
(_, 1) => {
trace!(target: "relayer-game", " > No More Challenge, Settle With Challenge");
if let Some(relay_header_parcel) =
Self::settle_with_challenge(&game_id, relay_affirmations.pop().unwrap())
{
relay_header_parcels.push(relay_header_parcel);
} else {
// Should never enter this condition
Self::settle_abandon(&game_id);
}
}
(last_round, _) => {
let distance = T::RelayableChain::distance_between(
&game_id,
Self::best_confirmed_header_id_of(&game_id),
);
if distance == round_count {
trace!(target: "relayer-game", " > A Full Chain Gave, On Chain Arbitrate");
// A whole chain gave, start continuous verification
if let Some(relay_header_parcel) = Self::on_chain_arbitrate(&game_id) {
relay_header_parcels.push(relay_header_parcel);
} else {
Self::settle_abandon(&game_id);
}
} else {
trace!(target: "relayer-game", " > Still In Challenge, Update Games");
// Update game, start new round
Self::update_game_at(&game_id, last_round, now);
continue;
}
}
}
Self::game_over(game_id);
}
// TODO: handle error
let _ = T::RelayableChain::try_confirm_relay_header_parcels(relay_header_parcels);
trace!(target: "relayer-game", "---");
Ok(())
}
verify proof in game
fn verify_relay_proofs(
relay_header_id: &Self::RelayHeaderId,
relay_header_parcel: &Self::RelayHeaderParcel,
relay_proofs: &Self::RelayProofs,
optional_best_confirmed_relay_header_id: Option<&Self::RelayHeaderId>,
) -> DispatchResult {
//verify ethash_proof
ensure!(
Self::verify_header(header, ethash_proof),
<Error<T>>::HeaderInv
);
...
//verify mmr
ensure!(
Self::verify_mmr(
last_leaf,
mmr_root,
mmr_proof
.iter()
.map(|h| array_unchecked!(h, 0, 32).into())
.collect(),
vec![(
*best_confirmed_block_number,
best_confirmed_block_header_hash
)],
),
<Error<T>>::MMRInv
);
...
}
confirm relay parcel after game
pub fn update_confirmeds_with_reason(
relay_header_parcel: EthereumRelayHeaderParcel,
reason: Vec<u8>,
) {
let relay_block_number = relay_header_parcel.header.number;
ConfirmedBlockNumbers::mutate(|confirmed_block_numbers| {
// TODO: remove old numbers according to `ConfirmedDepth`
confirmed_block_numbers.push(relay_block_number);
BestConfirmedBlockNumber::put(relay_block_number);
});
ConfirmedHeaderParcels::insert(relay_block_number, relay_header_parcel);
Self::deposit_event(RawEvent::PendingRelayHeaderParcelConfirmed(
relay_block_number,
reason,
));
}
darwinia backing module
redeem will happen only after game finished and block confirmed
redeem
/// Redeem balances
///
/// # <weight>
/// - `O(1)`
/// # </weight>
#[weight = 10_000_000]
pub fn redeem(origin, act: RedeemFor, proof: EthereumReceiptProofThing<T>) {
let redeemer = ensure_signed(origin)?;
if RedeemStatus::get() {
match act {
RedeemFor::Token => Self::redeem_token(&redeemer, &proof)?,
RedeemFor::Deposit => Self::redeem_deposit(&redeemer, &proof)?,
}
} else {
Err(<Error<T>>::RedeemDis)?;
}
}
parse BurnAndRedeem event
fn parse_token_redeem_proof(
proof_record: &EthereumReceiptProofThing<T>,
) -> Result<(T::AccountId, (bool, Balance), RingBalance<T>), DispatchError> {
let verified_receipt = T::EthereumRelay::verify_receipt(proof_record)
.map_err(|_| <Error<T>>::ReceiptProofInv)?;
let fee = T::EthereumRelay::receipt_verify_fee();
let result = {
let eth_event = EthEvent {
name: "BurnAndRedeem".to_owned(),
...
debug::trace!(target: "ethereum-backing", "[ethereum-backing] Darwinia Account: {:?}", darwinia_account);
Ok((darwinia_account, (is_ring, redeemed_amount), fee))
}
finish the transfer
C::transfer(
&Self::account_id(),
&darwinia_account,
redeem_amount,
KeepAlive,
)?;
// // Transfer the fee from redeemer.
// T::RingCurrency::transfer(redeemer, &T::EthereumRelay::account_id(), fee, KeepAlive)?;
VerifiedProof::insert(tx_index, true);
Darwinia To Ethereum
wormhole
lock token
async function ethereumBackingLockDarwinia(account, params, callback, t) {
try {
console.log('ethereumBackingLock', { account, params, callback }, params.ring.toString(), params.kton.toString())
if (window.darwiniaApi) {
await window.darwiniaApi.isReady;
const injector = await web3FromAddress(account);
window.darwiniaApi.setSigner(injector.signer);
const hash = await window.darwiniaApi.tx.ethereumBacking.lock(params.ring, params.kton, params.to)
.signAndSend(account);
callback && callback(hash);
}
} catch (error) {
console.log(error);
}
}
darwinia backing module
lock balance and send ScheduleMMRRootEvent
// Lock some balances into the module account
/// which very similar to lock some assets into the contract on ethereum side
///
/// This might kill the account just like `balances::transfer`
#[weight = 10_000_000]
pub fn lock(
origin,
#[compact] ring_to_lock: RingBalance<T>,
#[compact] kton_to_lock: KtonBalance<T>,
ethereum_account: EthereumAddress,
) {
...
T::RingCurrency::transfer(
&user, &Self::account_id(),
ring_to_lock,
AllowDeath
)?;
let raw_event = RawEvent::LockRing(
user.clone(),
ethereum_account.clone(),
RingTokenAddress::get(),
ring_to_lock
);
let module_event: <T as Config>::Event = raw_event.clone().into();
let system_event: <T as frame_system::Config>::Event = module_event.into();
locked = true;
<LockAssetEvents<T>>::append(system_event);
Self::deposit_event(raw_event);
if locked {
//will send ScheduleMMRRootEvent
T::EcdsaAuthorities::schedule_mmr_root((
<frame_system::Module<T>>::block_number().saturated_into::<u32>()
/ 10 * 10 + 10
).saturated_into());
}
}
bridger
handle ScheduleMMRRootEvent
// call ethereum_backing.lock will emit the event
EventInfo::ScheduleMMRRootEvent(event) => {
if self
.darwinia2ethereum
.is_authority(block, &self.account)
.await?
{
info!("{}", event);
let ex = Extrinsic::SignAndSendMmrRoot(event.block_number);
self.delayed_extrinsics.insert(event.block_number, ex);
}
}
submit signed_mmr_root extrinsic
Extrinsic::SignAndSendMmrRoot(block_number) => {
if let Some(darwinia2ethereum) = &darwinia2ethereum {
trace!("Start sign and send mmr_root...");
if let Some(relayer) = &darwinia2ethereum_relayer {
let ex_hash = darwinia2ethereum
.ecdsa_sign_and_submit_signed_mmr_root(
&relayer,
spec_name,
block_number,
)
.await?;
info!(
"Sign and send mmr root of block {} in extrinsic {:?}",
block_number, ex_hash
);
}
}
}
darwinia relay authorities
verify signature and send MMRRootSigned event
/// Verify
/// - the relay requirement is valid
/// - the signature is signed by the submitter
#[weight = 10_000_000]
pub fn submit_signed_mmr_root(
origin,
block_number: BlockNumber<T>,
signature: RelayAuthoritySignature<T, I>
) {
...
let mmr_root =
T::DarwiniaMMR::get_root(block_number).ok_or(<Error<T, I>>::DarwiniaMMRRootNRY)?;
...
ensure!(
T::Sign::verify_signature(&signature, &message, &signer),
<Error<T, I>>::SignatureInv
);
...
Self::mmr_root_signed(block_number);
Self::deposit_event(RawEvent::MMRRootSigned(block_number, mmr_root, signatures));
}
wormhole
invoke VerifyProof contract
- only after MMRRootSigned
export async function ClaimTokenFromD2E({ networkPrefix, mmrIndex, mmrRoot, mmrSignatures, blockNumber, blockHeaderStr, blockHash, historyMeta} , callback, t ) {
connect('eth', async(_networkType, _account, subscribe) => {
...
darwiniaToEthereumVerifyProof(_account, {
root: '0x' + historyMeta.mmrRoot,
MMRIndex: historyMeta.best,
blockNumber: blockNumber,
blockHeader: blockHeader.toHex(),
peaks: mmrProof.peaks,
siblings: mmrProof.siblings,
eventsProofStr: eventsProof.toHex()
}, (result) => {
console.log('darwiniaToEthereumVerifyProof', result)
callback && callback(result);
});
}
export async function darwiniaToEthereumVerifyProof(account, {
root,
MMRIndex,
blockNumber,
blockHeader,
peaks,
siblings,
eventsProofStr
}, callback) {
let web3js = new Web3(window.ethereum || window.web3.currentProvider);
const contract = new web3js.eth.Contract(DarwiniaToEthereumTokenIssuingABI, config.DARWINIA_ETHEREUM_TOKEN_ISSUING);
// bytes32 root,
// uint32 MMRIndex,
// uint32 blockNumber,
// bytes memory blockHeader,
// bytes32[] memory peaks,
// bytes32[] memory siblings,
// bytes memory eventsProofStr
contract.methods.verifyProof(
root,
MMRIndex,
blockHeader,
peaks,
siblings,
eventsProofStr).send({ from: account }, function(error, transactionHash) {
if(error) {
console.log(error);
return;
}
callback && callback(transactionHash)
})
}
contract
issue mint
function verifyProof(
bytes32 root,
uint32 MMRIndex,
bytes memory blockHeader,
bytes32[] memory peaks,
bytes32[] memory siblings,
bytes memory eventsProofStr
)
public
whenNotPaused
{
uint32 blockNumber = Scale.decodeBlockNumberFromBlockHeader(blockHeader);
require(!history[blockNumber], "TokenIssuing:: verifyProof: The block has been verified");
Input.Data memory data = Input.from(relay.verifyRootAndDecodeReceipt(root, MMRIndex, blockNumber, blockHeader, peaks, siblings, eventsProofStr, storageKey));
ScaleStruct.LockEvent[] memory events = Scale.decodeLockEvents(data);
address ring = registry.addressOf(bytes32("CONTRACT_RING_ERC20_TOKEN"));
address kton = registry.addressOf(bytes32("CONTRACT_KTON_ERC20_TOKEN"));
uint256 len = events.length;
for( uint i = 0; i < len; i++ ) {
ScaleStruct.LockEvent memory item = events[i];
uint256 value = decimalsConverter(item.value);
if(item.token == ring) {
expendDailyLimit(ring, value);
IERC20(ring).mint(item.recipient, value);
emit MintRingEvent(item.recipient, value, item.sender);
}
if (item.token == kton) {
expendDailyLimit(kton, value);
IERC20(kton).mint(item.recipient, value);
emit MintKtonEvent(item.recipient, value, item.sender);
}
}
history[blockNumber] = true;
emit VerifyProof(blockNumber);
}
verify mmr
function verifyRootAndDecodeReceipt(
bytes32 root,
uint32 MMRIndex,
uint32 blockNumber,
bytes memory blockHeader,
bytes32[] memory peaks,
bytes32[] memory siblings,
bytes memory eventsProofStr,
bytes memory key
) public view whenNotPaused returns (bytes memory){
// verify block proof
require(
verifyBlockProof(root, MMRIndex, blockNumber, blockHeader, peaks, siblings),
"Relay: Block header proof varification failed"
);
// get state root
bytes32 stateRoot = Scale.decodeStateRootFromBlockHeader(blockHeader);
return getLockTokenReceipt(stateRoot, eventsProofStr, key);
}
